Railless Omnidirectional Transfer Trolley Solid PU Tire Multiple Safety Protection For Factory Indoor Outdoor Material Transport
| Place of Origin | China |
|---|---|
| Brand Name | MRT |
| Certification | CE |
| Model Number | KPW |
| Minimum Order Quantity | 1 |
| Price | USD 8500-32000/Set |
| Packaging Details | Large-sized double-layer PVC film packaging, small-sized non-sterilization wooden box packaging |
| Delivery Time | 25-50 Woiking Days |
| Payment Terms | L/C, T/T, D/P |
| Supply Ability | 20Sets/Month |
Product Details
| Rated Load Capacity | 5‑50 Tons Customizable | Platform Dimension | Customized According To Site Requirement |
|---|---|---|---|
| Drive Motor | DC Brushless Motor | Battery Working Time | 8‑12 Hours Continuous Working |
| Battery Charging Mode | Automatic Charging / Manual Charging Optional | Brake System | Electromagnetic Brake |
| Running Distance | Unlimited For Battery Powered Type | Load Handling Type | Flat Transport With No Tilting |
| Installation Requirement | No Ground Rail Needed | Additional Accessory | Alarm Buzzer, Overload Protection Device |
You can tick the products you need and communicate with us in the message board.
| SKU_ID | Product_Name_EN | Load_Capacity | Power_Supply | Running_Mode | Dimension_L_W_H | Running_Speed | Main_Material | Certification | MOQ | Price_USD | Lead_Time | Warranty | Application_Scenario | Customization_Support | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TC-5T-TR-001 | 5 Ton Battery Powered Trackless Electric Transfer Cart | 5 Ton | Lead-acid Battery | Trackless | 5000*2500*500 mm | 0-25 m/min (Adjustable) | Q235 Carbon Steel | CE, ISO9001 | 1 Set | $5900.00 | 15 Working Days | 2 Years | Production line material circulation and logistics delivery | Yes | |
| TC-10T-TR-002 | 10 Ton Lithium Battery Trackless Electric Transfer Trolley | 10 Ton | Lead-acid Battery | Trackless | 6000*3000*600 mm | 0-25 m/min (Adjustable) | Q355 High Strength Steel | CE, ISO9001 | 1 Set | $8900.00 | 20 Working Days | 2 Years | Foundry heavy metal parts short‑distance transfer | Yes | |
| TC-25T-TR-003 | 25 Ton Battery Operated Trackless Electric Flat Cart | 25 Ton | Lithium Battery | Trackless | 4000*2000*500 mm | 0-25 m/min (Adjustable) | Q235 Carbon Steel | CE, ISO9001 | 1 Set | $19500.00 | 12 Working Days | 2 Years | Light duty workshop cargo transfer, parts handling | Yes | |
| TC-35T-TR-004 | 35 Ton Heavy Duty Trackless Electric Transfer Cart | 35 Ton | Lithium Battery | Trackless | 7000*3500*600 mm | 0-25 m/min (Adjustable) | Q355 High Strength Steel | CE, ISO9001 | 1 Set | $20600.00 | 25 Working Days | 2 Years | Ultra heavy duty industrial material transport, steel coil handling | Yes |
Product Description

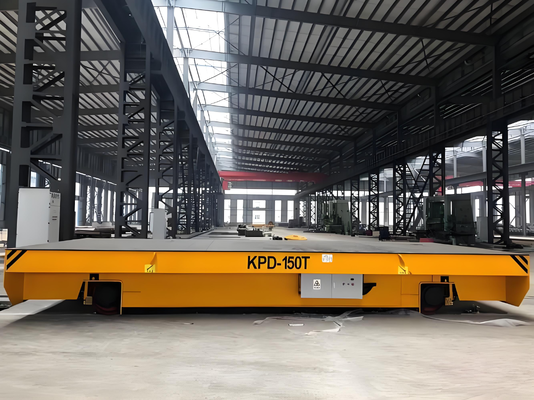

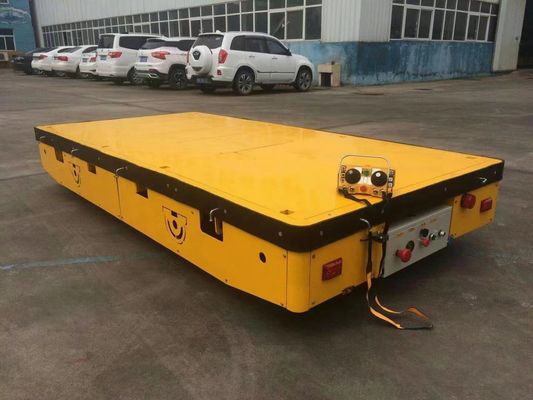

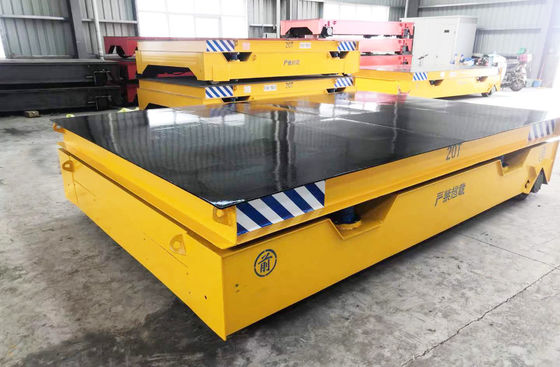

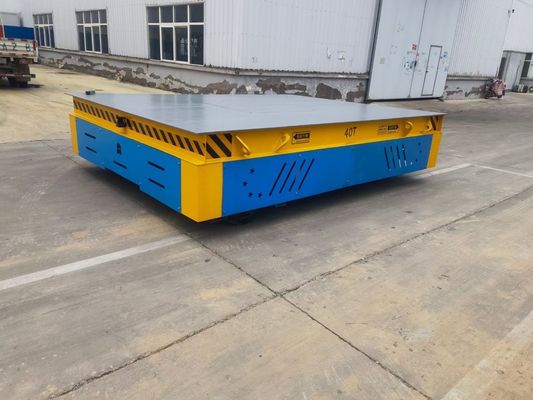

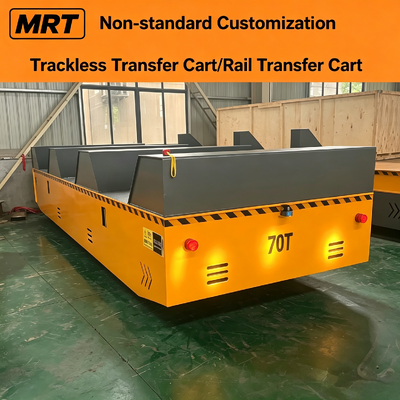

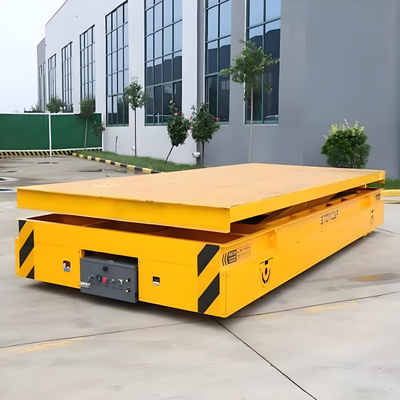

Trackless platform vehicle
Trackless material handling platform cart moves freely on flat ground without rails. It adopts hydraulic lifting structure to handle various heavy loads. Flexible steering performance makes it fit narrow workshop space. Simple control mode lowers operator learning cost, ideal for heavy‑goods transportation in manufacturing and storage areas.
product superiority
- No track laying required, save civil‑engineering transformation cost
- Omni‑directional traveling 360‑degree spot rotation and crab side‑shift, flexible for narrow‑space operation
- Solid PU tires, no scratch to cement and epoxy floor
- Dual control modes wireless remote control plus onboard joystick, simple operation
- Battery powered zero emission low noise, suitable for indoor and outdoor working conditions
- Wide load range 5‑150 ton customizable, platform size and structure support OEM
- Heavy‑duty welded carbon steel frame, stable performance for long‑time continuous work
Main Technical Parameters
- Rated Load Capacity: 5‑50t custom made
- Platform Dimension: Customized according to working site
- Running Speed: 0‑20 m/min stepless speed regulation
- Power Source: Lead‑acid battery or lithium battery optional
- Continuous Working Time: 8‑12 hours
- Ground Clearance: 50‑80 mm
- Driving Mode: 2‑wheel drive or 4‑wheel drive optional
- Steering Mode: 360 degree in‑situ rotation zero turning radius
- Wheel Material: Polyurethane solid wheel
- Brake System: Electromagnetic power‑off brake
- Control Method: Wireless remote control plus hand pendant
- Protection Class: IP54 for electric cabinet
- Working Ambient Temperature: ‑20℃ ~ +55℃
- Safety Devices: Anti‑collision sensor emergency stop audible visual alarm overload protection
- Optional Functions: Scissor lifting automatic charging AGV positioning
application scenarios
Widely used for transporting molds, steel parts, finished goods, raw materials in machinery factory, metallurgy workshop, shipyard, new energy workshop, construction material plant and other industrial sites.
why did you choose us
- Professional manufacturer, all equipment can be customized according to your working conditions
- Strict quality inspection before delivery, support CE certification
- Long warranty period and overseas technical guidance service
- Flexible trade terms: EXW, FOB, CIF, DDP available
- Support OEM & ODM solution design
Contact us and send your requirements of load, size and working environment, we will provide the most suitable transportation solution and formal quotation for you.
