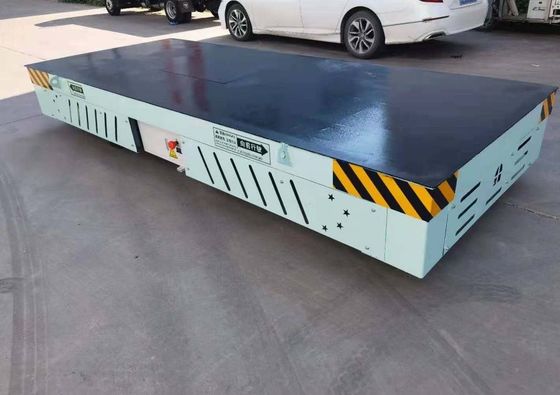

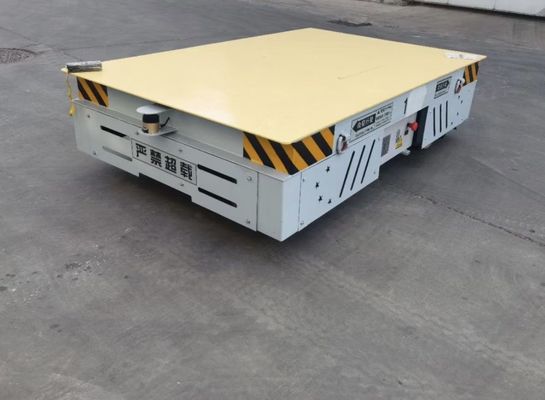

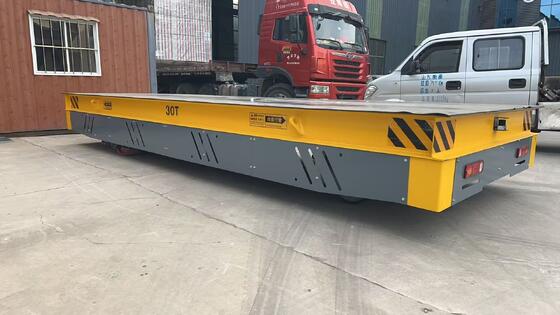

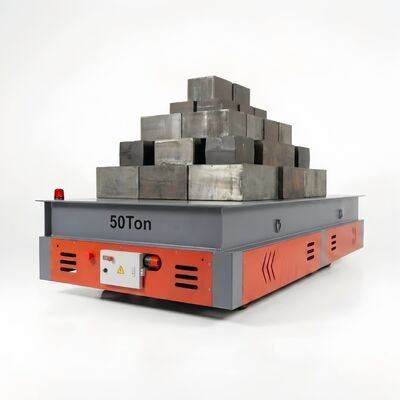

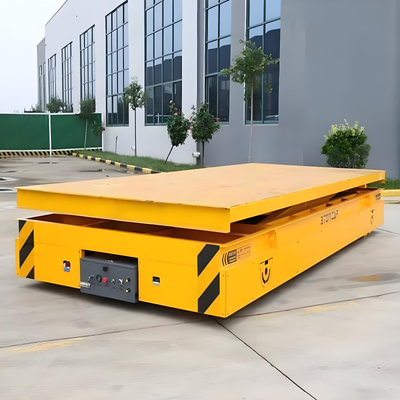

Heavy Duty Rubber Wheel Transfer Cart Battery Driven Trackless Transfer Cart For Plant Internal Material Conveying
| Place of Origin | China |
|---|---|
| Brand Name | MRT |
| Certification | CE |
| Model Number | KPW |
| Minimum Order Quantity | 1 |
| Price | USD 8500-32000/Set |
| Packaging Details | Large-sized double-layer PVC film packaging, small-sized non-sterilization wooden box packaging |
| Delivery Time | 25-50 Woiking Days |
| Payment Terms | L/C, T/T, D/P |
| Supply Ability | 20Sets/Month |
Product Details
| Rated Load | 5‑50t Customizable | Platform Size | Customized Dimension |
|---|---|---|---|
| Power Source | Lead‑acid Battery / Lithium Battery Optional | Control Mode | Wireless Remote Control & Hand Pendant |
| Steering Function | 360° In‑situ Zero‑radius Rotation | Driving Type | 2‑wheel Drive / 4‑wheel Drive Optional |
| Wheel Material | Polyurethane Solid Wear‑resistant Wheel | Brake System | Electromagnetic Power‑off Brake |
| Continuous Working Time | 8‑12 Hours |
You can tick the products you need and communicate with us in the message board.
| SKU_ID | Product_Name_EN | Load_Capacity | Power_Supply | Running_Mode | Dimension_L_W_H | Running_Speed | Main_Material | Certification | MOQ | Price_USD | Lead_Time | Warranty | Application_Scenario | Customization_Support | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TC-60T-TR-001 | 60 Ton Battery Powered Trackless Electric Transfer Cart | 60 Ton | Lithium Battery | Trackless | 4000*1800*600 mm | 0-25 m/min (Adjustable) | Q235 Carbon Steel | CE, ISO9001 | 1 Set | $38300.00 | 15 Working Days | 2 Years | Heavy parts transportation in machinery manufacturing workshops | Yes | |
| TC-65T-TR-002 | 65 Ton Lithium Battery Trackless Electric Transfer Trolley | 65 Ton | Lead-acid Battery | Trackless | 7500*2500*1100 mm | 0-25 m/min (Adjustable) | Q355 High Strength Steel | CE, ISO9001 | 1 Set | $33000.00 | 20 Working Days | 2 Years | Mold handling for stamping and injection molding workshops | Yes | |
| TC-70T-TR-003 | 70 Ton Battery Operated Trackless Electric Flat Cart | 70 Ton | Lithium Battery | Trackless | 5000*2000*650 mm | 0-25 m/min (Adjustable) | Q235 Carbon Steel | CE, ISO9001 | 1 Set | $41600.00 | 12 Working Days | 2 Years | Heavy steel structure transfer in steel processing factories | Yes | |
| TC-75T-TR-004 | 75 Ton Heavy Duty Trackless Electric Transfer Cart | 75 Ton | Lead-acid Battery | Trackless | 6500*2200*850 mm | 0-25 m/min (Adjustable) | Q355 High Strength Steel | CE, ISO9001 | 1 Set | $43500.00 | 25 Working Days | 2 Years | High‑load material conveyance in foundry plants | Yes |
Product Description
Trackless platform vehicle
The trackless platform vehicle is a flexible heavy‑duty handling equipment for industrial workshops and warehouses. Without rail laying requirement, it runs on solid rubber wheels and supports omnidirectional movement including 360‑degree in‑situ rotation.It comes with a stable hydraulic lifting system for safe lifting and transfer of heavy workpieces. Featuring compact structure, simple operation and low maintenance cost, the equipment can work continuously for long hours. It is widely used in machinery processing, mold transportation and logistics storage to improve material handling efficiency.
product superiority
- High‑strength carbon steel welded body, strong load‑bearing capacity
- Solid PU tires, will not scratch epoxy and cement ground
- Omnidirectional movement, 360‑degree in‑situ rotation and side‑shift, adapt to narrow workshops
- Dual operation of wireless remote control and on‑board joystick, easy to operate
- Complete safety configuration: emergency stop, sound‑light alarm, infrared obstacle avoidance
- Lithium battery power supply, low noise and zero pollution, suitable for indoor and outdoor use
- Customizable load capacity and platform size to meet different production demands
main technical parameters
| Parameter | Specification |
|---|---|
| Model | BWP series, support non‑standard customization |
| Rated Load Capacity | 5‑50t, max 200t |
| Platform Dimension | Customized Length × Width |
| Platform Height | 500‑900mm |
| Ground Clearance | 50‑75mm |
| Running Speed | 0‑25m/min no‑load, 0‑20m/min full‑load, stepless speed regulation |
| Steering Mode | Omnidirectional in‑situ rotation, differential steering, side movement |
| Minimum Turning Radius | 0 (omnidirectional model) |
| Max Climbing Gradient | 3%‑5% |
| Motor Power | 1‑15KW |
| Power Supply | Battery powered |
| Battery Type | Maintenance‑free lead‑acid battery, lithium battery optional |
| Battery Voltage | 24V / 48V / 72V |
| Wheel Material | Polyurethane wheel, solid rubber wheel |
| Wheel Quantity | 4‑8 pieces |
| Control Mode | Wireless remote control & manual pendant |
| Braking Mode | Electromagnetic brake |
| Chassis Structure | Integrated steel welded structure |
| Safety Device | Emergency stop button, anti‑collision sensor, warning light, alarm horn |
| Continuous Working Time | 4‑8 hours |
| Certification | CE, ISO |
| Customization | Support non‑standard customization for size and lifting function |
application scenarios
- Heavy workpiece transportation inside manufacturing workshops
- Mold moving for stamping and injection‑molding production areas
- Heavy steel component handling in steel processing facilities
- High‑weight material transfer for foundry production sites
- Cross‑zone goods delivery in warehouses and material yards
- Production‑run material circulation in assembly workshops
Why choose us
- Professional manufacturer, all equipment can be customized according to your working conditions
- Strict quality inspection before delivery, support CE certification
- Long warranty period and overseas technical guidance service
- Flexible trade terms: EXW, FOB, CIF, DDP available
- Support OEM & ODM solution design
Contact us and send your requirements of load, size and working environment, we will provide the most suitable transportation solution and formal quotation for you.
