Flexible Electric Trackless Transfer Cart Stable Rubber Wheel Transfer Cart For Indoor And Outdoor Factory Material Handling
| Place of Origin | China |
|---|---|
| Brand Name | MRT |
| Certification | CE |
| Model Number | KPW |
| Minimum Order Quantity | 1 |
| Price | USD 41600-53000/Set |
| Packaging Details | Large-sized double-layer PVC film packaging, small-sized non-sterilization wooden box packaging |
| Delivery Time | 25-50 Woiking Days |
| Payment Terms | L/C, T/T, D/P |
| Supply Ability | 20Sets/Month |
Product Details
| Product Name | Trackless Platform Vehicle | Color | Customized,Red,Requirement,white Or As Your Requirements,red Orange Or Other |
|---|---|---|---|
| Material | Q235,Stainless Steel,Carbon Steel,Alloy Steel,Steel Plate & Power System | Usage | Industrial,Tools,Transportation,Heavy Duty,transport |
| Power Supply | Battery,bus Bar,cable Reel,Rail / Cable Drum / Cable Reel / Battery | Warranty | 1 Year |
| Capacity | 1-300ton,1-500 Ton For Transfer Cart,5-40T,5TON-50TON,3-500 Ton | Certification | CE ISO SGS |
| Load Capacity | 1-300 T,customized |
You can tick the products you need and communicate with us in the message board.
| SKU_ID | Product_Name_EN | Load_Capacity | Power_Supply | Running_Mode | Dimension_L_W_H | Running_Speed | Main_Material | Certification | MOQ | Price_USD | Lead_Time | Warranty | Application_Scenario | Customization_Support | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TC-70T-TR-001 | 70 Ton Battery Powered Trackless Electric Transfer Cart | 70 Ton | Lead-acid Battery | Trackless | 6000*2500*700 mm | 0-25 m/min (Adjustable) | Q235 Carbon Steel | CE, ISO9001 | 1 Set | $41600.00 | 15 Working Days | 2 Years | Factory indoor heavy cargo logistics transportation | Yes | |
| TC-85T-TR-002 | 85 Ton Lithium Battery Trackless Electric Transfer Trolley | 85 Ton | Lead-acid Battery | Trackless | 5000*2000*650 mm | 0-25 m/min (Adjustable) | Q355 High Strength Steel | CE, ISO9001 | 1 Set | $47500.00 | 20 Working Days | 2 Years | Workshop large workpiece and parts transfer | Yes | |
| TC-95T-TR-003 | 95 Ton Battery Operated Trackless Electric Flat Cart | 95 Ton | Lithium Battery | Trackless | 7500*2500*1100 mm | 0-25 m/min (Adjustable) | Q235 Carbon Steel | CE, ISO9001 | 1 Set | $52100.00 | 12 Working Days | 2 Years | Industrial mold long-distance moving | Yes | |
| TC-90T-TR-004 | 90 Ton Heavy Duty Trackless Electric Transfer Cart | 90 Ton | Lithium Battery | Trackless | 4000*1800*600 mm | 0-25 m/min (Adjustable) | Q355 High Strength Steel | CE, ISO9001 | 1 Set | $49600.00 | 25 Working Days | 2 Years | Steel structure and metal material handling | Yes |
Product Description

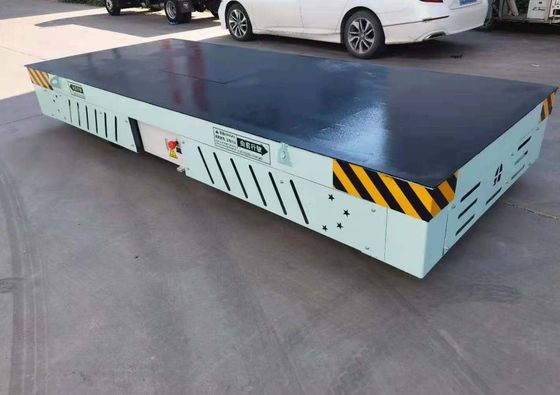

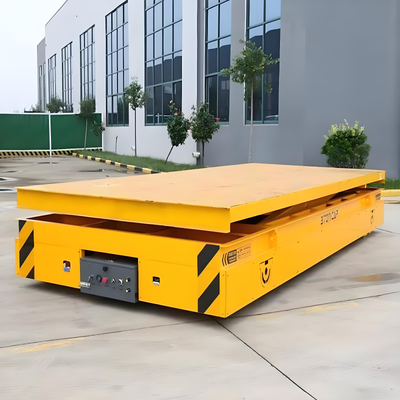

Trackless platform vehicle
Trackless platform vehicle is a heavy‑duty transfer equipment without rail laying. It adopts solid rubber wheels to realize forward backward movement side shift and 360‑degree in‑situ rotation with flexible steering. Equipped with hydraulic lifting structure it features large load capacity stable running simple operation and easy maintenance. It is widely used in factory workshops mold processing warehousing logistics for transporting heavy workpieces and materials to improve handling efficiency.
product superiority
- Track‑free operation without rail installation, saving workshop reconstruction investment
- Omnidirectional movement and zero turning radius, flexible operation in narrow areas
- Dual control of wireless remote and handheld pendant, easy to operate
- Integral welded chassis, sturdy structure and long service life
- Multiple safety protection devices reduce potential risks during operation
- Battery power supply with convenient charging, adaptable to various indoor environments
- Strong custom performance, platform size and lifting function can be customized according to site requirements
main technical parameters
| Parameter | Specification |
|---|---|
| Model | BWP series custom available |
| Rated Load | 5‑50t max 200t |
| Platform Size | Custom length × width |
| Platform Height | 500‑900mm |
| Running Speed | 0‑25m/min no‑load 0‑20m/min full‑load |
| Steering Mode | Omnidirectional zero‑turn steering |
| Max Climbing Gradient | 3%‑5% |
| Power Supply | Battery powered |
| Battery | Maintenance‑free lead‑acid battery lithium battery optional |
| Control Mode | Wireless remote and handheld pendant |
| Wheel Material | Polyurethane or solid rubber wheel |
| Safety Devices | Emergency stop anti‑collision sensor warning light alarm horn |
| Continuous Working Time | 4‑8 hours |
| Certification | CE ISO |
| Custom Service | Support size and lifting function customization |
application scenarios
- Industrial workshop heavy load transportation
- Large workpiece and mold transfer
- Steel structure and metal parts handling
- Foundry and metallurgical material conveyance
- Warehouse cross-area cargo delivery
- Production line material circulation
- Factory internal logistics transit
Why choose us
- Professional manufacturer, all equipment can be customized according to your working conditions
- Strict quality inspection before delivery, support CE certification
- Long warranty period and overseas technical guidance service
- Flexible trade terms: EXW, FOB, CIF, DDP available
- Support OEM & ODM solution design
Contact us and send your requirements of load, size and working environment, we will provide the most suitable transportation solution and formal quotation for you.
