Cleanroom Ceiling Mounted Bridge Crane Suspension Crane Customizable

Product Description:

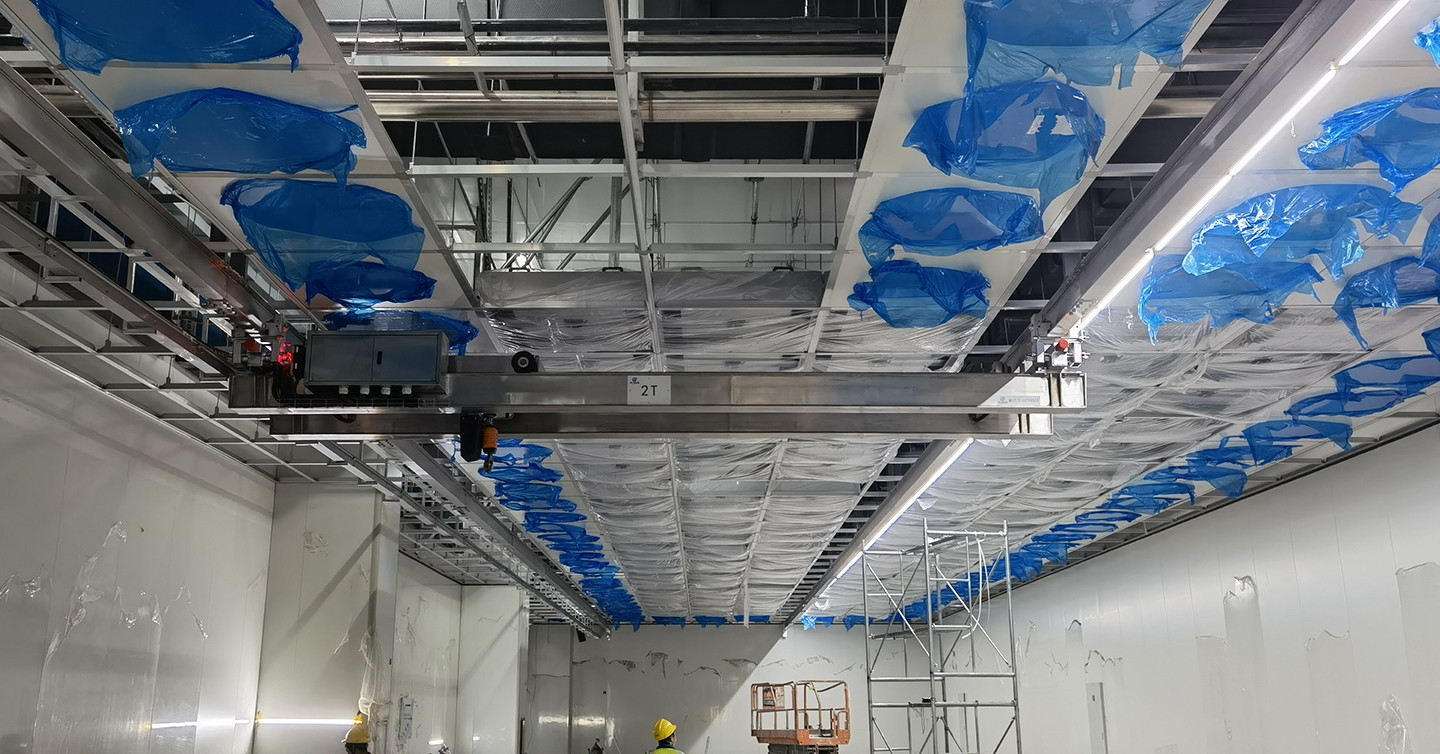

With the increasing demand for cranes in industries such as photovoltaics and food and healthcare that require high air quality, our company Shandong Longhui Crane has continuously increased its research efforts and developed green, environmentally friendly and clean cranes for dust-free environments. This product adopts advanced domestic manufacturing processes and integrates multiple patented technologies, and the overall design reaches the advanced level in China.

To prevent dust from occurring, our company's clean cranes mainly have the following characteristics:

1. Using a clean electric hoist. According to the usage conditions of the clean room, customized and developed clean electric hoists with corresponding working levels, with a protection level of IP65 and dustproof treatment.

2. Several key parts are all treated with stainless steel. For example, the lifting chain is replaced with a stainless steel chain, the running wheels of the small car are replaced with stainless steel wheels, the running wheels of the large car are replaced with stainless steel wheels, and the key connection points are connected with high-strength stainless steel bolts.

3. The operating motor adopts a three in one fully hard tooth reducer with overall explosion-proof treatment.

4. All lubricants use semi liquid lubricants to enhance the sealing of the equipment.

5. The wheels are changed to nylon wheels, which have stronger hardness and toughness and are not suitable for slag falling.

6. Add dust to the tray.

7. The electrical system adopts fully sealed explosion-proof treatment, with an overall protection level of IP65.

8. The lifting chain can be equipped with a protective telescopic device to prevent small flakes from flying according to customer needs.

The use of clean cranes greatly saves labor costs for enterprises conducting production operations in a dust-free environment, reduces labor intensity, improves production efficiency, saves investment costs, promotes rapid development of enterprises, and also promotes the diversified development process of the lifting industry. It has been widely used in industries such as chemical, pharmaceutical, food processing, special materials, microelectronics, optomagnetic products, medical, aerospace, laboratory, photovoltaic, optoelectronics, etc.

The clean crane produced by our company generally has a lifting capacity of 2-10t, and the dust prevention level can be designed according to the customer's standards and requirements, meeting the level requirements of its dust-free room. It is not only clean and does not produce dust, but also has simple operation, light weight, wear resistance and durability, reliable quality, and superior performance. It provides a material handling solution for dust-free environments, especially for thousand level clean rooms and ten thousand level clean rooms.

Features:

• Cleanroom Crane: A crane specifically designed for use in cleanroom environments.
• Working Temperature: -20℃~+50℃, suitable for a wide range of temperatures.
• Safety Device: Overload protection ensures safety and longevity.
• Installation Method: Ceiling mounted for easy installation.
• Control Method: Pendant control for easy operation.

Applications:

Mairuite (Shandong) is a Chinese company that produces cleanroom cranes, which are designed to meet the highest quality standards. The cranes are certified by ISO and come with a minimum order quantity of 1, with a price that is negotiable. Delivery time is between 15-30 days, with payment terms being either L/C or T/T. The company can supply up to 3 sets per week and comes with a one-year warranty. The working temperature of the cranes is -20℃~+50℃ and they can be powered by either 220V/380V. Furthermore, the cranes come with overload protection as a safety device.

Technical Parameters:

Customization:

Brand Name: Mairuite (Shandong)
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 15-30days
Payment Terms: L/C T/T
Supply Ability: 3 sets/week
Capacity: Up To 1000kg
Working Temperature: -20℃~+50℃
Speed: 0.5-20 m/min
Control Method: Pendant Control

Mairuite (Shandong) Cleanroom Cranes are perfect for cleaning rooms and other applications. Our cleanroom cranes are ISO certified and made in China. We offer one minimum order quantity, negotiable price, 15-30 days delivery time, payment terms with L/C T/T, 3 sets/week supply ability, up to 1000kg capacity, working temperature of -20℃~+50℃, speed of 0.5-20 m/min, and pendant control.

Support and Services:

Cleanroom Crane provides technical support and services to ensure the performance and longevity of our products. Our technical support team is available to help with product troubleshooting, installation, and maintenance. We also offer regular software updates, hardware upgrades, and other services to ensure that our products are always up to date and running efficiently. Additionally, we are always available to provide advice and feedback on the use of our products.

Packing and Shipping:

The packaging and shipping of Cleanroom Crane is designed to ensure the safe delivery of the product. The product is packaged with an outer box made of corrugated cardboard and bubble wrap. Inside the box, each component of the Cleanroom Crane is securely wrapped in foam and then placed in the box. The box is then sealed and labeled with the product name and shipping information. Finally, the box is shipped via a reliable shipping service.
